Our Robots
Discover the future of orchard management with our groundbreaking solution! With our innovative software, managing pesticide spraying has never been easier.
Air Atomizing System
The product includes 12 adjustable nozzles with two different calibers that can be switched, providing a fan-shaped coverage of 270°.
Electronic Control
System
Our plan includes a four-point strategy and a route plan to achieve unmanned operation with self-driving accuracy of ±5cm.
Caterpillar Chassis
The vehicle can climb at a maximum angle of 30° and has an inclination of 15°, making it suitable for all terrains.
Power Package
This hybrid robot can run on both diesel and electricity, providing up to 5 hours of continuous power.
Water Tank
Our 450-liter water tank can irrigate 1,2 hectares per hour, ensuring high efficiency.
Cooperative work
Control, monitor, and optimize every aspect of your operations directly from your tablet. Our smart supply platform ensures you stay ahead by alerting you when machines need refueling or replenishing treatment agents. Increase efficiency, save time, and minimize risks with our advanced technology.

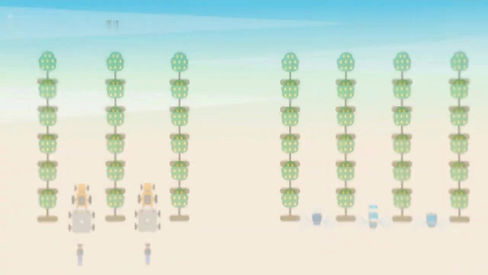

In this video, you'll see how our robots work cooperatively on large fields. If you have a big field, it's not a problem! Multiple robots can be programmed to work together seamlessly.
Orchard Multi-function Robot M450
Integrated design, modular assembly, one robot combines 3 functions together: spraying, weeding and transportation.
-
Mowing: electronic lifting, stubble height can be adjusted from 10cm to 30cm; easily operated 0,3 hectares acres per hour, 3,3 hectares per day
-
Transportation: Max load 700kg, multiple intelligent control mode, efficient circulation transportation
Unmanned Orchard Sprayer Robot S450
-
Design: more practical design, meet various needs
-
Powerful: powered by fuel and electricity, 15kW fuel engine, 5x45AH storage battery, more than 1000kg load weight;
-
Long-lasting: 16L fuel tank, supporting operation for more than 6h; 450L large capacity water tank, single-tank spray can last more than 26 minutes;
-
Comprehensively Applicable: caterpillar chassis, strong off-road performance, can steer at original point, 30° maximum climbing angle , can also work in hilly areas;
-
Unmanned operation: after the path planning, the subsequent operations do not need manual driving
Vineyard Sprayer Robot VS450
Technology: intelligent operation, easy to use
-
The navigation system is precise, with satellite technology and RTK centimeter-level positioning. It ensures driving deviation of less than 2.5cm.
-
Remote monitoring of machine condition and low pesticide storage alarm.
-
When demarcating electronic fence, the machine intelligently stops at the border.
-
Ultrasonic radar detects objects within 3 meters accurately, automatically stopping the machine at a distance of 1.5 meters to ensure safety for both people and machines.
-
Special designed for vineyard, the fog droplets are more gentle.
-
Dwarf body design, lower center of gravity, super narrow body, can leisurely shuttle in most orchards.
Orchard Autonomous Sprayer S1000
Orchard autonomous sprayer S1000, not only increased and upgraded the capacity of the tank, but also optimized the structure of the machine itself and intelligent control system, to provide farmers with easy to use.

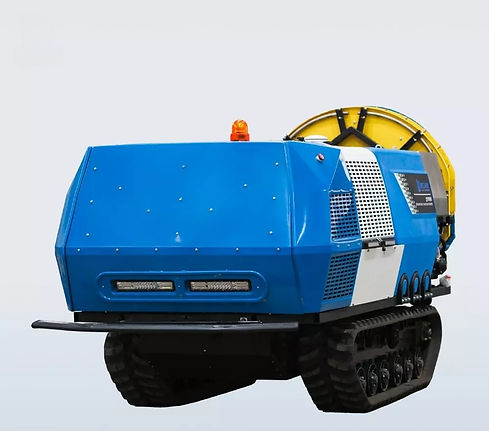

Orchard Autonomous Sprayer S500
-
Integration of fully enclosed structure, the parts perfectly “hidden” in the interior, reducing the risk of mechanical failure;
-
Innovative double-door design, easy maintenance of core components; waterproof and dustproof at the same time makes the body line more fluent and compact, light and flexible;
-
Diesel supercharged power system, continuous operation during operation, reducing the number of charging and refueling;
-

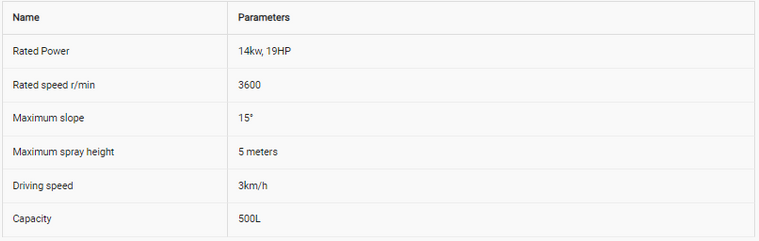

14 kW twin-cylinder water-cooled diesel engine, 21-liter fuel tank, supporting continuous operation for 6 hours;
-
500-liter large-capacity medicine tank, a box of medicine can be sprayed for half an hour, the operation is more durable;
-
Spraying diameter 20 meters, spraying height 5 meters, strong penetration.
